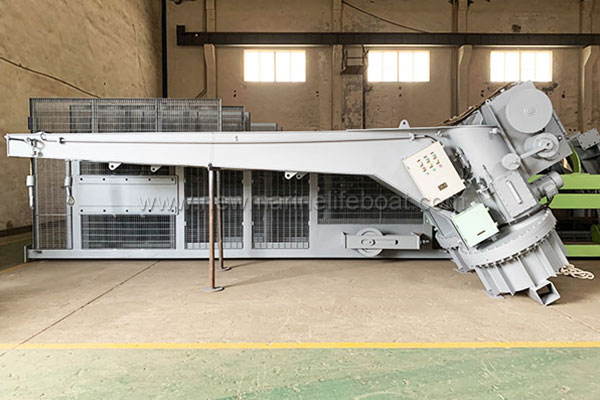

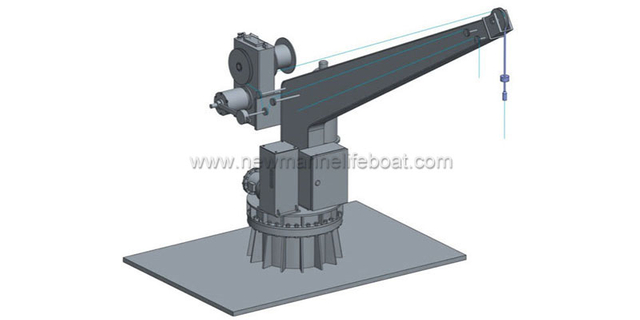

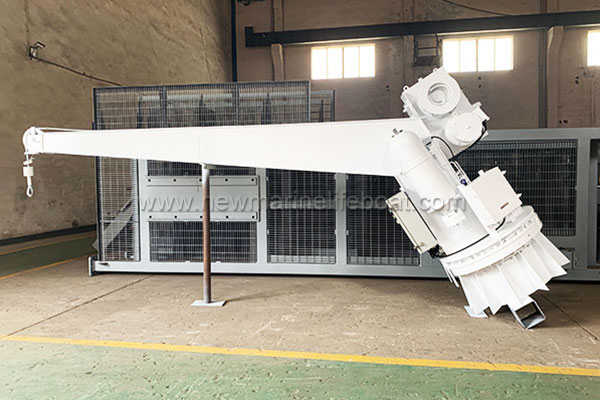

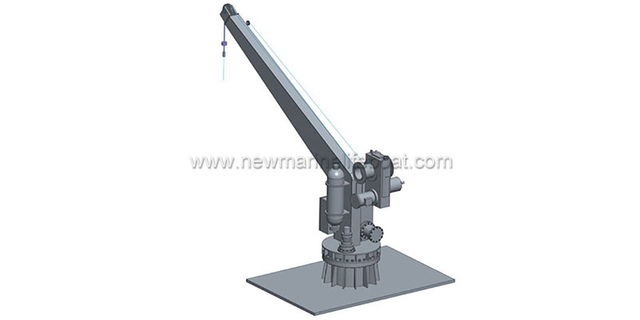

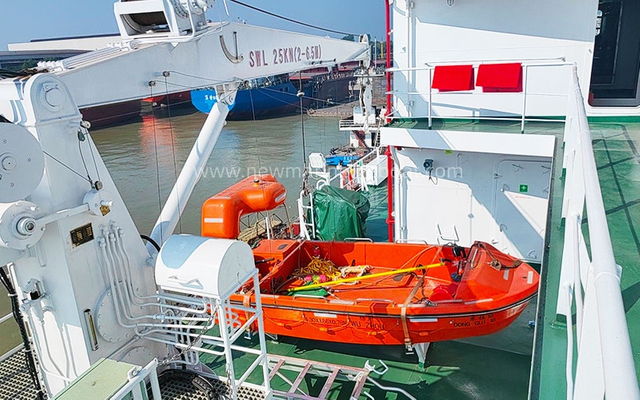

Single arm davit is mainly used to launch and recover rescue boats (or life rafts). The davit (crane ) has the function of electrical power (or manual) hoisting and gravity lowering. The davit arm can slew depend on pressure oil provided by the pump station, hand pump, or accumulator.

The single arm davit is designed and manufactured according to the requirements of SOLAS performed currently. It meets the requirements of RES. MSC.47 (66) - Amendments of the International Convention for the Safety of Life at Sea, 1974 and RES. of MSC.48 (66) - International Lifesaving Appliance Code. All appliances leave factory have completed test acceptance according to the requirements of RES. MSC81 (70) - Lifesaving Appliance Test.

Name Max Working Load	Unit kn	Main Data
		14	23	25
Slewing Radius	mm	≤4000	≤5400	≤5500
Max. Slewing Load/Hoisting Load	kn	14
Hoisting Speed of Wire Pop	m/min	≥18
Lowering Speed of Wire Pop	m/min	40-60
Max. Slewing Angle	m	≤330
Min. Slewing Angle	m	≤110
Stored Power Slewing Angle	r/min	0.6-0.8
Slewing Speed in Stored Power Driven	r/min	≥0.25
Diameter of Wire Pop	mm	Φ16
Capacity of Drum	m	30
