Selecting a rescue boat and davit should be treated as a system-matching decision rather than two separate purchasing choices. The boat’s fully loaded weight, dimensions, capacity, engine configuration, and onboard equipment directly affect davit requirements, while SWL, outreach, launching height, recovery method, and installation conditions determine whether the davit can operate the boat safely.
For shipowners, shipyards, marine equipment distributors, and vessel designers, poor compatibility can lead to installation difficulties, inefficient launching and recovery, or non-compliance with applicable requirements. This guide explains the key technical factors to check when matching a rescue boat with the right davit.

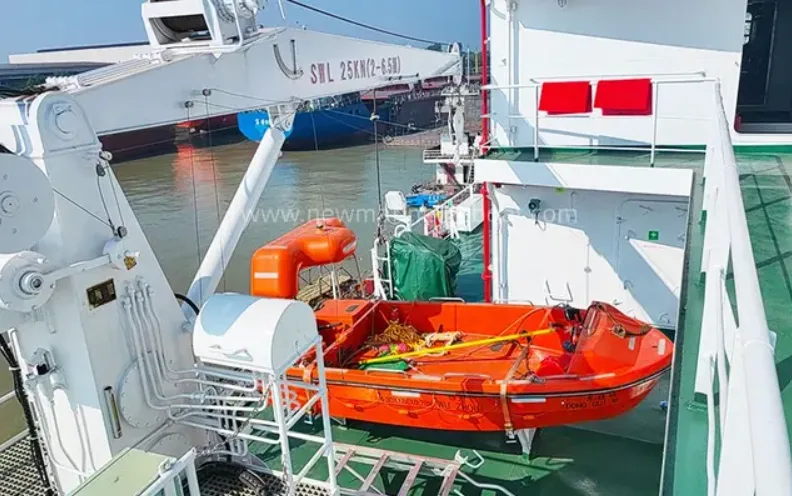

A rescue boat and davit work together during launching, recovery, and stowage. The davit must have sufficient safe working load (SWL) for the rescue boat in its fully loaded condition, while its geometry must allow the boat to reach the required launch and recovery positions.
The matching process should therefore consider:
Boat weight and davit capacity: The davit's SWL must accommodate the actual lifting load.
Launching and recovery compatibility: The davit must provide the required movement and lifting range.
Safety and operational reliability: Boat-davit connections, lifting points, and operating mechanisms must work together under actual vessel conditions.
Incorrect matching can create problems even when both products meet their individual specifications. Typical issues include:
Insufficient SWL: The davit may not be adequately rated for the fully loaded boat.
Inadequate outreach: The boat may not clear the vessel's side during launching.
Limited installation space: The davit footprint or foundation may conflict with existing deck structures.
Recovery limitations: The davit may not provide the required height or recovery movement.
The rescue boat's weight is one of the most important specifications when selecting a davit. In addition to the boat's lightweight condition, the calculation should account for personnel, fuel, batteries, safety equipment, and other onboard equipment.
The fully loaded operating weight provides a more accurate basis for determining the required lifting capacity and evaluating the davit's performance.
The boat's passenger capacity, length, beam, and overall dimensions can affect both the required lifting capacity and the available installation space. Larger boats may require greater operating range and more space for stowage and launching.
The boat's lifting points and connection positions should also be identified because they influence how the boat interfaces with the davit during lifting and recovery.
The engine configuration can affect the boat's overall weight, weight distribution, and stowage requirements. Inboard and outboard arrangements may also create different space and connection considerations.
Other onboard equipment, including fuel systems, batteries, navigation equipment, and rescue gear, should be included when determining the actual operating condition of the boat.
The rescue boat's lifting points, lifting slings, hooks, and connection positions directly affect the interface between the boat and davit. These components should be compatible with the intended launching and recovery arrangement.
The launching height determines how far the rescue boat must travel from its stowed position toward the water, while outreach determines how far the davit can move the boat beyond the vessel side. Both dimensions should provide enough clearance for a safe launching path.
The space between the rescue boat and the vessel side should be sufficient throughout the launching process. Hull structures, railings, deck equipment, and other obstacles should be considered to prevent interference during operation.
Recovery requires the davit to lift the rescue boat back from the water and return it to its stowed position. The required lifting height and operating range should therefore be verified against the vessel layout and boat stowage position.
Recovery speed can affect operational efficiency, particularly on vessels where rescue boat operations may be frequent. Weather, sea conditions, vessel motion, and available operating space should also be considered when evaluating the recovery procedure.
Cargo ships and tankers often have limited or highly planned deck space around lifesaving equipment. Existing deck structures, cargo-handling equipment, pipelines, and other shipboard systems can influence where the rescue boat and davit can be installed.
For these vessels, the davit selection should therefore consider the overall deck layout, installation location, maintenance access, and interaction with nearby equipment.
Offshore and work vessels may operate in harsher marine environments and can experience greater exposure to wind, waves, vibration, and corrosion. Some vessels may also require more frequent launching and recovery of rescue boats.
In these applications, structural durability, corrosion protection, maintenance requirements, and operational reliability should receive greater attention during davit selection.
Passenger ships and specialized vessels may have different lifesaving arrangements because of their passenger capacity, vessel layout, and operational profile. Available deck space and the location of other lifesaving equipment can affect the overall installation arrangement.
The davit should therefore be considered as part of the vessel's wider lifesaving system rather than as an isolated piece of equipment.
Davit selection must also take into account the regulatory and classification requirements applicable to the vessel. Depending on the project, these may include SOLAS, the LSA Code, classification society requirements, and flag-state requirements.
The final boat-davit arrangement should be reviewed against the applicable approval requirements before installation to avoid compliance or certification issues later in the project.
Category | Key Checks |
Rescue Boat | Fully loaded weight; passenger capacity; length and beam; engine configuration; onboard equipment |
Lifting Arrangement | Lifting points; connection positions; lifting arrangement; boat-davit interface |
Davit | SWL; outreach; lifting range; davit type; operating method |
Installation | Stowage position; foundation area; deck space; structural support; surrounding clearance |
Launching | Launching height; launching path; vessel-side clearance; hull and deck interference |
Recovery | Recovery height; lifting range; recovery speed; operating space; return to stowage |
Vessel Conditions | Vessel type; deck layout; operating environment; launching frequency; maintenance conditions |
Compliance | SOLAS; LSA Code; classification requirements; flag-state requirements; approval compatibility |
Final Review | Boat-davit compatibility; installation feasibility; launching and recovery procedure; complete system verification |
A suitable rescue boat is only part of a reliable marine lifesaving system. The davit must match the boat's fully loaded weight, dimensions, lifting points, launching requirements, and the physical conditions of the vessel.
For shipyards, vessel operators, and marine equipment buyers, matching the rescue boat and davit as a complete system helps ensure reliable installation, safe operation, and compliance.
Looking for a compatible rescue boat and davit solution? Contact New Marine for professional product selection and customized solutions.
